UTR-P  Uniform Temperature Reference (16 channel cold junction)

Features and Specifications
  • Accepts 2 wire or shielded 3 wire thermocouples
  • Accepts Type E, J, K, S, R, T, & N
  • +/- .1 deg C accuracy
Application

The UTR-P (Uniform Temperature Reference) module accepts 16 pairs of thermocouple wires, and incorporates an isothermal block as the reference temperature. These compact self contained rugged modules serve as cold junctions for the standard thermocouple types E, J, K, S, R, T, & N.

Overview

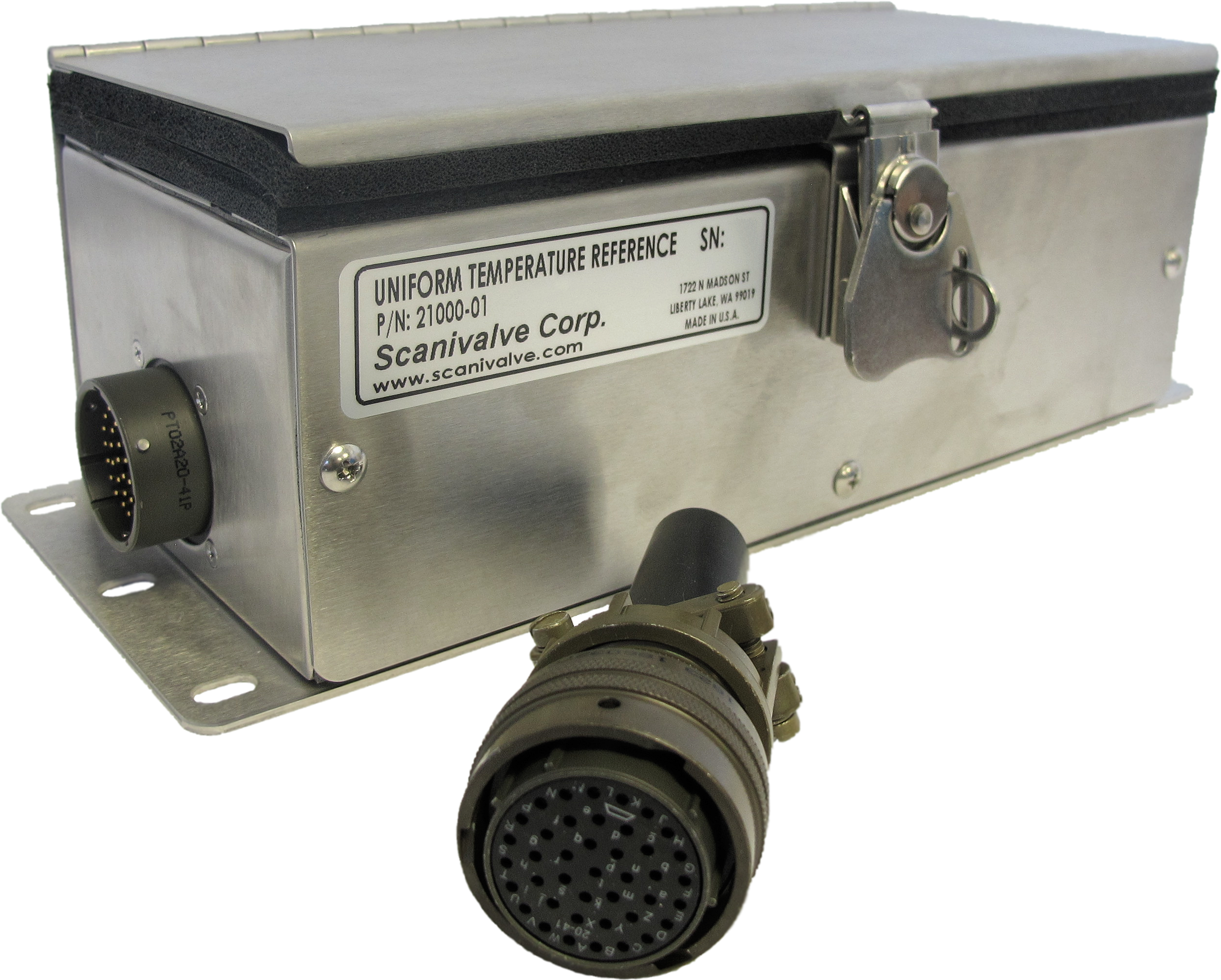

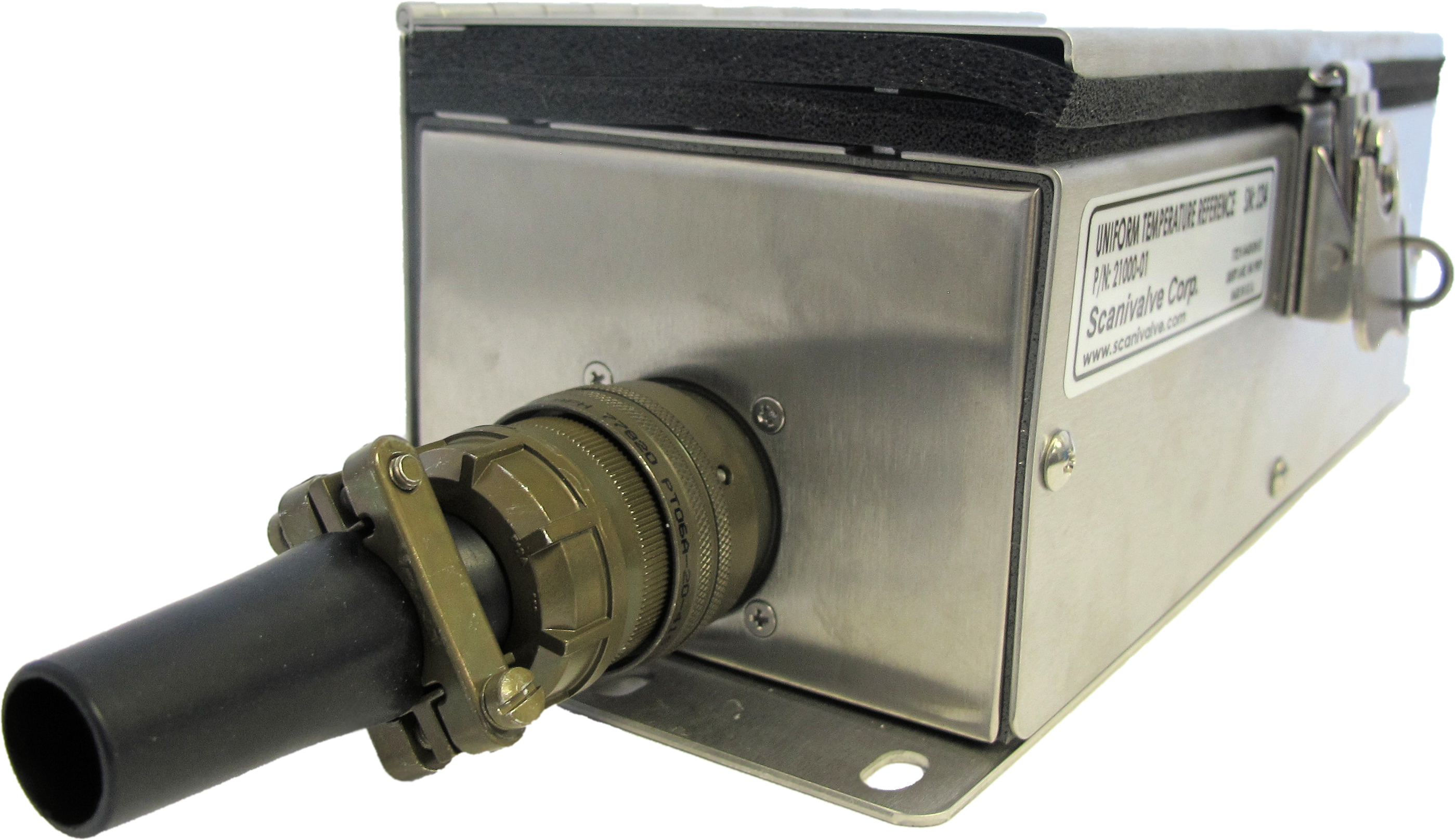

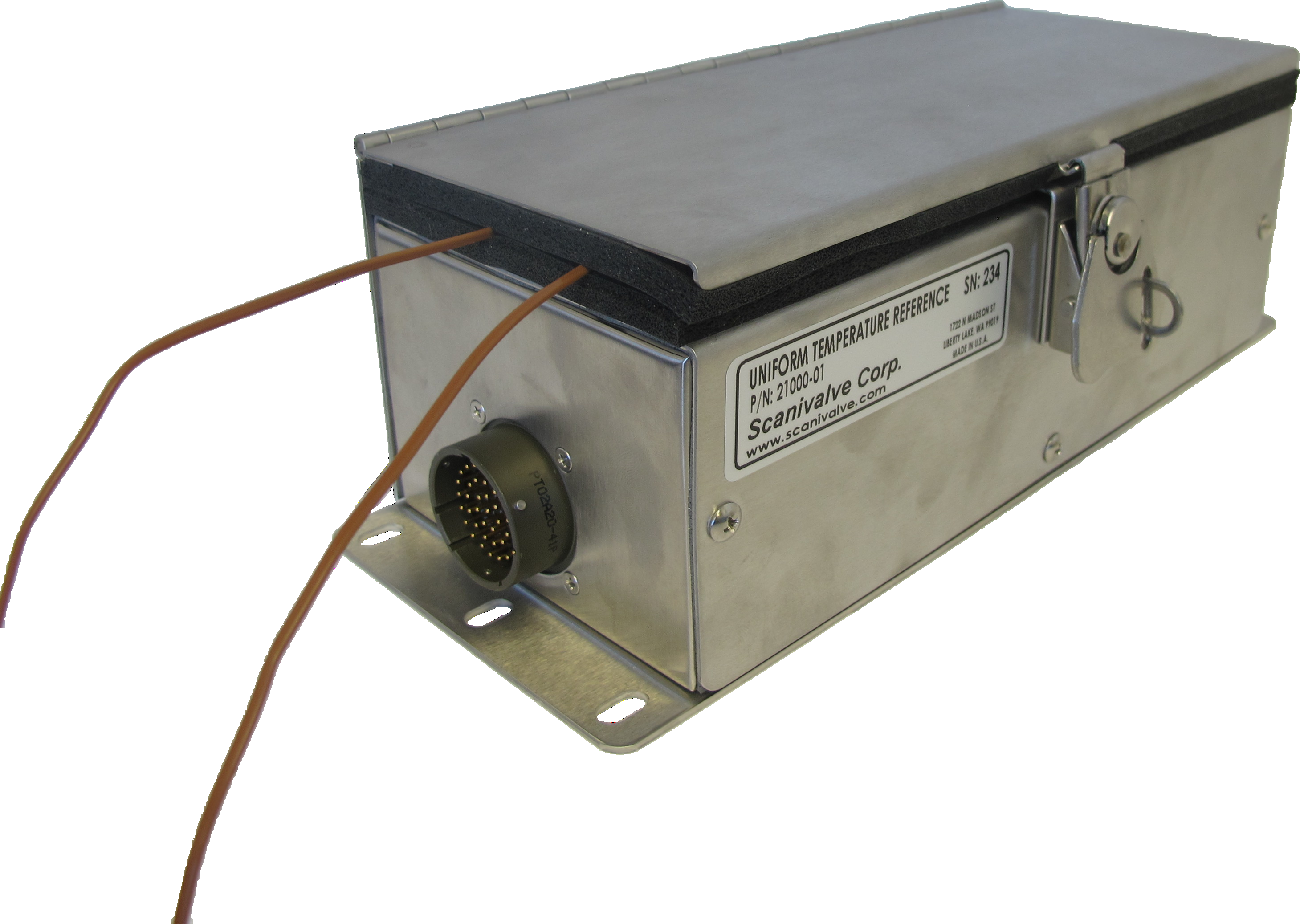

Photos


(Click photo to enlarge)
